This 69kv project includes the design of forty-four (44) steel structures located in Hancock County, Ohio. This transmission line project will require the installation of eight (8) engineered steel pole structures on concrete pier foundations, and thirty-six (36) direct embed standard wood pole equivalent steel tangents. The line will be single circuit carrying the North Findlay – Plaza Street circuit from Bigelow Switch to Plaza Street station.

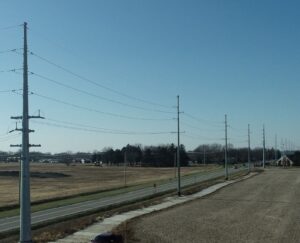

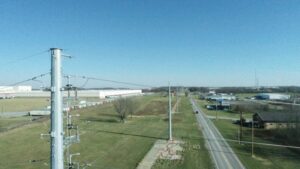

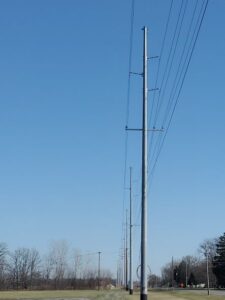

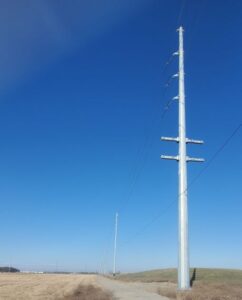

PROJECT PHOTO GALLERY
Awarded Packages
2 Miles of Transmission Line Construction
Environmental SWWP
Environmental Wood Matting
Foundations
Galvanized Steel Pole Erection
795kcmil 26/7 ACSR Conductors
ADSS Communication Line
Traffic Control
